CNC (Computer Numerical Control) turning is a manufacturing process where bars of material are held in a chuck and rotated while a tool is fed to the piece to remove material to create the desired shape. It’s a highly precise method that is used to create parts and components with cylindrical features. Given its versatility, CNC turning is crucial in fields requiring high levels of accuracy and repeatability such as automotive, aerospace, and electronics.
Advanced Turning Operations
At ICON Engineering, our CNC turning operations are a cornerstone of our manufacturing capabilities. We employ both conventional and live tooling to offer a wide range of turning services. Our advanced turning capabilities include:

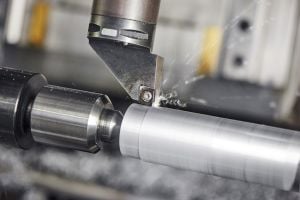

- Straight Turning: Removing material from the outside of a part to create a cylindrical shape.
- Taper Turning: Creating conical shapes by angling the cutting tool relative to the rotation axis of the workpiece.
- Profiling: Cutting longitudinal contours within a part to produce complex profiles for intricate designs.
- Drilling, Boring, and Reaming: Performing precise drilling, boring, and reaming operations to create or refine holes within the workpiece.
- Thread Cutting: Using sophisticated control over tool movement to create accurate internal and external threads for functional components.

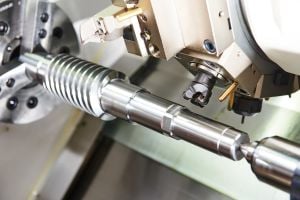

Additionally, our CNC lathes are equipped with milling capabilities, which significantly expand the types of operations we can perform. This dual functionality allows for:
- Off-axis Milling: Our lathes are capable of performing milling tasks on the same setup, which is particularly useful for creating features that are off the central axis of the part, such as slots, flats, and complex geometries.
- Integrated Machining: This combination of turning and milling in one setup provides a highly efficient workflow, reducing the need for multiple setups and handling, thus improving the accuracy and speed of production.
These milling capabilities on our CNC lathes allow us to produce parts that require both rotational and prismatic features, making our services ideal for complex, multi-featured parts often required in aerospace, automotive, and precision engineering industries. Our engineers and machinists expertly navigate the capabilities of these machines to optimize the manufacturing process, ensuring high precision and cost-efficiency.
Parts Manufactured Using CNC Turning
At ICON.Engineering, CNC turning is a pivotal part of our manufacturing capabilities, allowing us to produce cylindrical components with precision and efficiency. This process is ideal for parts that are symmetrical around their central axis, and it provides excellent surface finishes and dimensional accuracy. Here’s a look at the types of components we produce using CNC turning:
Automotive Parts:
- Drive shafts that transmit torque and rotation to other vehicle components.
- Axles which are key structural elements in the wheel assembly.
- Bushings and hubs that fit into the wheel system for smooth operation.
Aerospace Components:
- Engine components such as pistons and shafts, which require high precision for optimal performance.
- Aerospace fasteners including bolts and screws, essential for aircraft assembly.
- Hydraulic system components, such as sleeves and spacers, which are critical for the operation of flight control systems.
Medical Devices:
- Implantable rods and screws used in orthopedic surgeries to support bone healing.
- Components for medical instruments, such as the bodies of stethoscopes or components for laparoscopic devices.
- Custom connectors and adaptors used in various medical devices for surgeries and treatments.
Industrial Machinery:
- Rollers and pulleys used in conveyor systems.
- Spindles for machine tools that require precision machining to function effectively.
- Precision bushings that serve as linings for rotary or sliding applications within machinery.
Electronic Components:
- Enclosures for delicate electronic assemblies.
- Cooling fins that are integral to managing heat dissipation in electronic systems.
- Threaded connectors that ensure secure and reliable electrical connections.
Customization and Precision
At ICON Engineering, customization is at the heart of what we do. We understand that each project has unique requirements and we are committed to delivering tailor-made solutions that meet the exact specifications of our clients. Our CNC turning processes are optimized to achieve superior precision, making it possible to undertake projects that demand the highest levels of accuracy. Our portfolio showcases our capability to handle everything from single prototypes to large-scale production runs without compromising on quality.
Industries Served
The versatility of CNC turning allows us to serve a wide array of industries. Our clients include major players in the aerospace sector where precision is paramount, automotive manufacturers requiring high performance and durability, and medical device companies that depend on absolute accuracy. Each industry presents unique challenges and ICON Engineering has developed specialized strategies to meet these demands effectively and efficiently.
Quality Assurance and Standards
ICON Engineering is committed to upholding the highest quality standards. Our CNC turning operations are ISO certified, reflecting our dedication to maintaining quality control at every stage of production. Regular audits and inspections ensure that every part meets stringent requirements and client specifications. Our proactive approach to quality assurance translates into reliability and superior product performance for our clients.
Turnaround Times and Logistics
Understanding the importance of timely delivery, we have streamlined our production processes to ensure quick turnaround times without sacrificing quality. Our strategic location and robust supply chain logistics enable us to serve clients both locally and globally, providing reliable and prompt delivery schedules that help keep your projects on track.
By choosing ICON Engineering for your CNC turning needs, you are partnering with a leader in precision engineering who is dedicated to delivering results that drive success. We are here to turn your concepts into reality with precision, efficiency, and a commitment to excellence.
